- Place of Origin: shenzhen china
- Brand Name: huying
- Model Number: X2

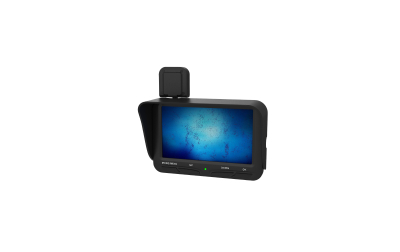

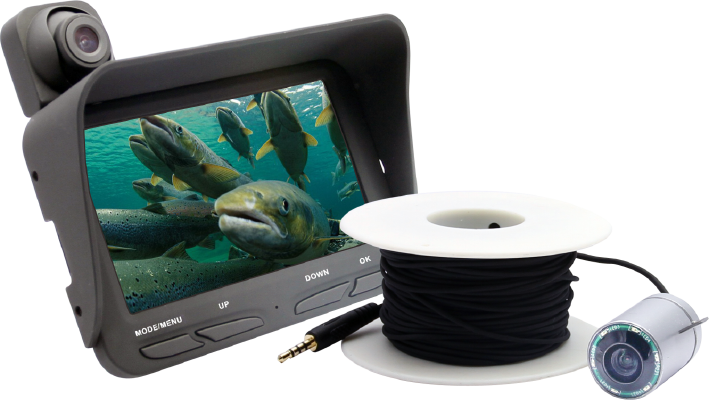

Fishing Equipment Display Operating Instruction
On/Off
Push the key into the “ON” position, the device will enter the standby situation once the indication light is blue; Push the key into “OFF” position, the device will be turned off automatically.
MODE Setting
Long press “MODE” under the standby situation, there is showing the “SCENE MODE” on the top left corner, then click, cyclic switch between the “NORMAL MODE”,” OUTDOOR MODE” and “INDOOR MODE”, finish the setting and stop the operation, the device will save the current scene, the scene icon will disappear.
MENU
Short press “MODE” and enter into: BRHGHTNESS- CONTRAST- SATURATION- LANGUAGE, these four settings. Press “UP” or “Down” to adjust the value for the first three settings,“ UP” is creasing, “DOWN” is decreasing. “UP” or “DOWN” is the language switching for the language setting. Finish the setting and stop the operation, the device will save the current setting, the icon will disappear.
UP/ DOWN
These two keys has the adjustment and switching function for all the settings.
Working Instruction
The device will show the image once the video signal is input. The screen will be blue when the external camera is moved out. The screen will be changed from blue to black after the blue lasts about 30s. Click any key or insert the external camera to activate the display during the screen is black.
The screen will show the notice “LOW BATTERY” when the device is under low battery situation. Click any key, the notice will disappear. Or the notice will show again after 1minute.Should use the stand-by battery or make the charging in time once the device is under low battery situation, in order to avoid the battery damage.
Installation and Charging of the Battery
The device can work more than six hours under the battery is full charging. Please kindly make the charging in time once the battery is low electricity. Push and press the battery cap according to the arrow indication, the battery can be taken out. Please do install the battery according to the indication of the charger electrode firstly, than making the charging on the electric socket. The indication light should be red during charging. The indication light will be turned into green when the charging is full. The life time of the battery will be short if the battery is used long time, and you should change the same standard battery. The battery should be replaced by pairs, no one old and one new .In order to make the best situation for the battery, it should be released the electricity and full charging within half year if the battery can not be used long time.
Remarks
1. Please do not expose the device to the raining as the device can not be waterproof. Please take the waterproof measure under raining.
2.Please kindly make sure the switch is on the “OFF” position or take out the battery if the device does not work.
3.Please note the installation and usage strength for the camera. Avoid the folding between the camera and plug root, to increase the durability of the TV line.
4. Please kindly turn off and restart the device if there is any crash .Replace or charge the battery once the battery is low electricity.
5.No metallic to the end of battery.
- Place of Origin: shenzhen china
- Brand Name: huying
- Model Number: X2
Specification
LCD Size | 4.3 inch TFT LCD(480*272) |
COMS SENSOR Pixel | 200W |
LENS | 140 degree wide angle lens |
Minimum Luminance | 1LUX (underwater) |
Battery | 18650 2000mAH lithium battery(2PCS) |
Microphone | Support |
Language | Simplified Chinese/ /English |
Lasting Time | 6 hours |
Weight | 230g (with the battery) |
Size | 278*96*49MM |
Underwater Camera (Infrared LED) | 6 PCS |
Camera Line | 20~30M(optional) |
The specification of the device should be subject to the final item as it may be updated.
